PAD

Information

Since our foundation in 1990, we have been producing PAD parts in various industrial fields with the best quality and competitive price by combining the latest facilities and excellent processing technology with foam raw materials used as interior materials for automobiles and electronic products.

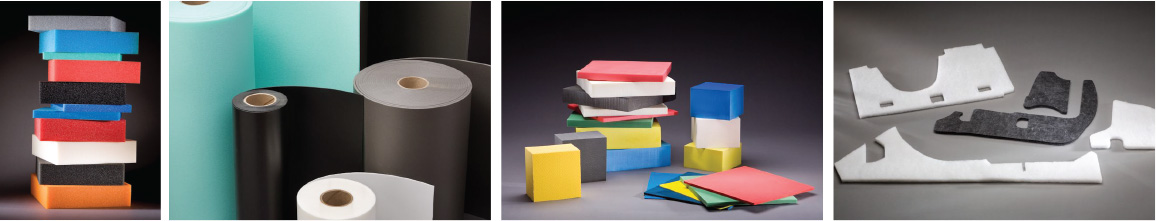

Material

We have extensive experience producing products from a wide variety of materials including closed, urethane foams, felts, and rubber compounds, as well as our own proprietary NoiseliteTM developed in 2011.


Closed Cell Foams

Applications include gasket, seals, cushioning and noise reduction.

  • PVC Foam - Excellent low temperature flexibility and flame resistant including fungi, oxidation and Weathering resistance
  • EPDM Foam - Excellent ozone, heat and fluid resistant
  • EVA - Excellent ozone and elongation resistance. Lightweight and formable
  • Cross –linked Polyethylene – Good chemical resistance and low water absorption

Urethane Foams

Applications include cushioning, gasket and noise isolation.

  • Polyether Urethane – Various densities and compression forces
  • Polyester Urethane – Various densities and porosities

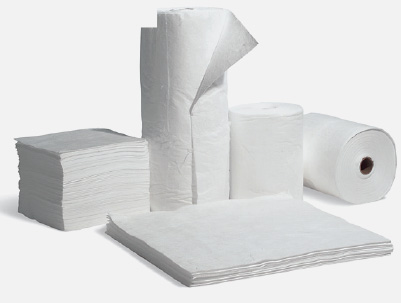

Felts

Applications include anti-squeak and rattle, cushion and seals.

  • PET
  • Needled Felt – Blending of wool and synthetic fibers for a tighter weave
  • Non-Woven

Solid Rubber

Applications include gasketing, sealing and cushioning.

  • Neoprene – Provides oil, ozone, oxidation and sunlight resistance
  • EPDM – Resistant to oil, ozone, oxygenated solvents and high temperatures

Material

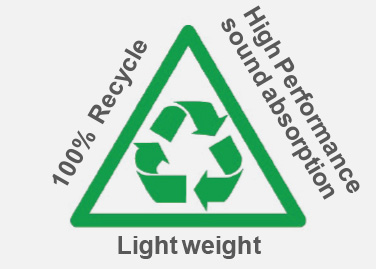

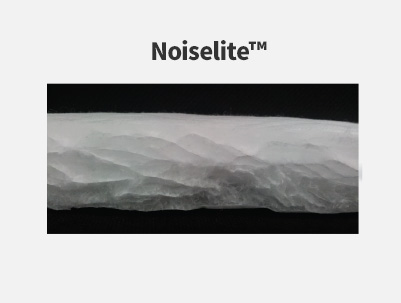

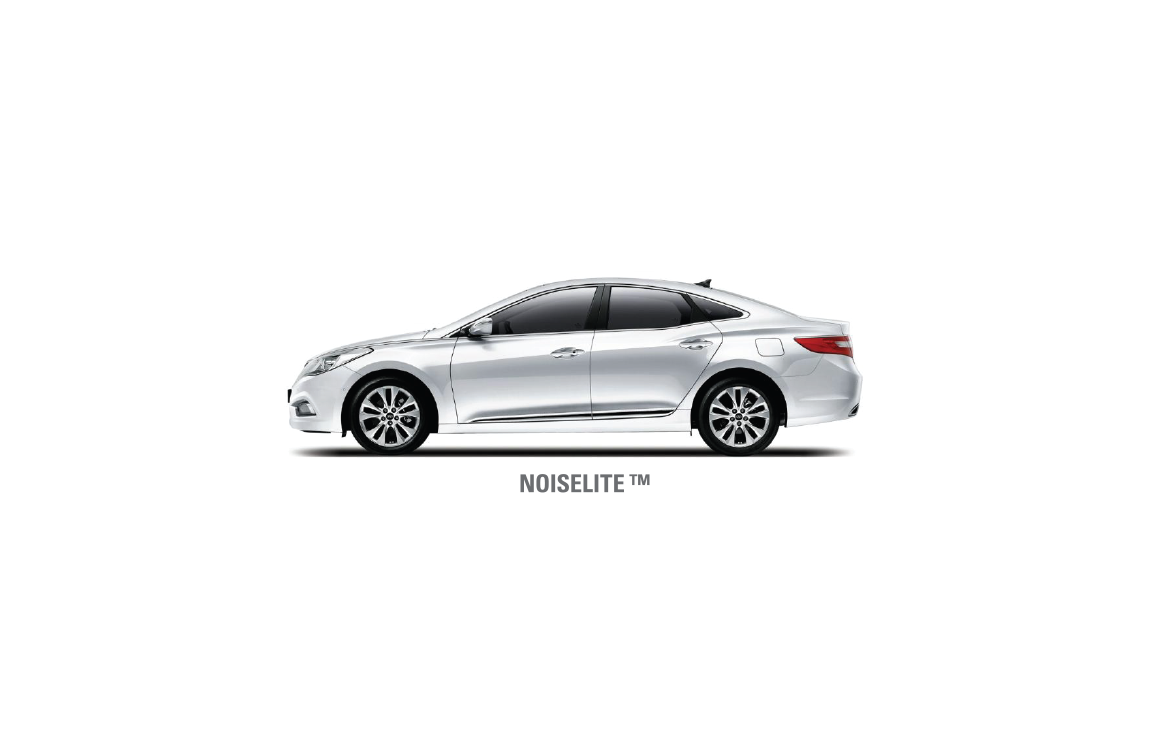

Noiselite™
  • Noiselite™ is a light-weight, high loft polypropylene acoustic insulation, which is made by new melt-blown process with our proprietary technology.
  • Fully recyclable and naturally hydrophobic, it is mold and mildew resistant-and all this at a cost that makes Noiselite the best value in acoustic insulation available today

Motor Trend

  • (1) Regulation of salvage recyclability
  • (2) Regulation of CO2 emissions
  • (3) Regulation of Vehicle Noise

Customer Needs

  • (1) Affordable prices
  • (2) Good gas mileage
  • (3) Quiet interior

Nanocell
  • provide durable, long-term performance in industrial applications.
  • Whether in gasket design, sealing, cushioning or vibration management, NANOCELL products are low-outgassing, non-fogging, non-corrosive.

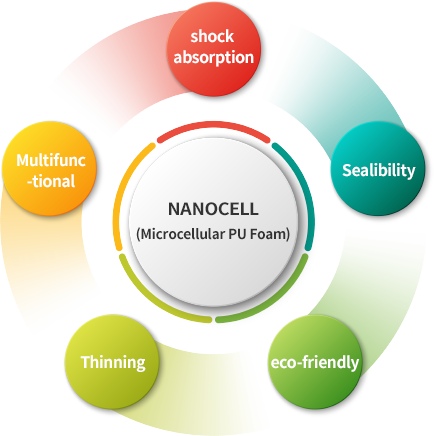

Nanocell
  • Shock absorption :
    shcok/vibration absorption and Noise cancellation

  • Sealibility :
    prevent dust contamination between equipment

  • Eco-friendly :
    meet RoHS and PoHS, PFOS and Halogen Free

  • Thinning :
    thin and uniform sheet (0.2㎜ thick~)

  • Multifuctional :
    Flame resistance, durable, long-term performance

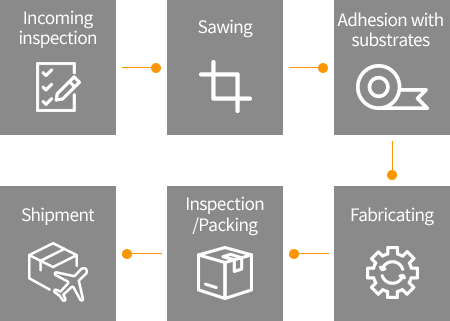

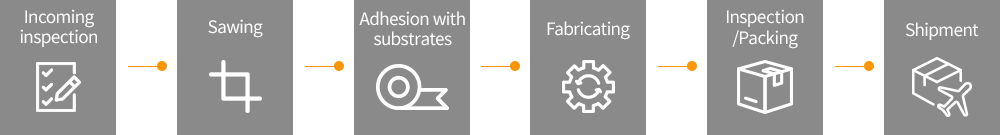

Production Process

Incoming
inspection
Incoming inspection
Sawing
재단(수평/수직)
Adhesion with
substrates
Adhesion with substrates
Fabricating
Fabricating
Inspection
/Packing
Inspection/Packing
Shipment
Shipment
Import insepction Import insepction
Import insepction
Sawing (Horizontal/Vertical) Sawing (Horizontal/Vertical)
Sawing
(Horizontal/Vertical)
Adhesion with substrates Adhesion with substrates
Adhesion with substrates
Fabricating
Fabricating(Auto Roll Press)
Fabricating(Auto Roll Press)
Fabricating(Sealing)
Fabricating(Sealing)
Fabricating(Thomson Press)
Fabricating(Thomson Press)
Inspection/Packing
Inspection/Packing
Shipment
Shipment

Application

Automotive

Sealing/Gasket

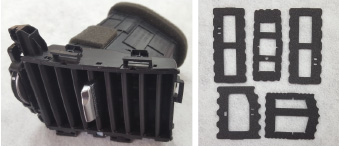

  • Air vent(Heat compressed PU)

    Air vent(Heat compressed PU)

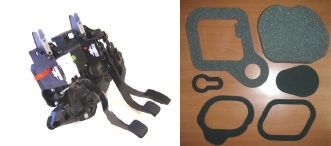

  • Pedal module(PU, EPDM)

    Pedal module(PU, EPDM)

  • Antinoise Pad(Nonwoven)

    Antinoise Pad(Nonwoven)

Anti-vibration / anti-shock / anti-rattle

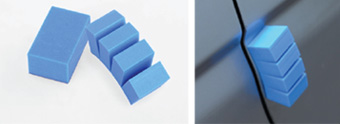

  • Door Guard(EVA)

    Door Guard(EVA)

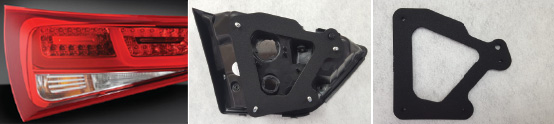

  • Rear Lamp(EPDM)

    Rear Lamp(EPDM)


Sound absorption

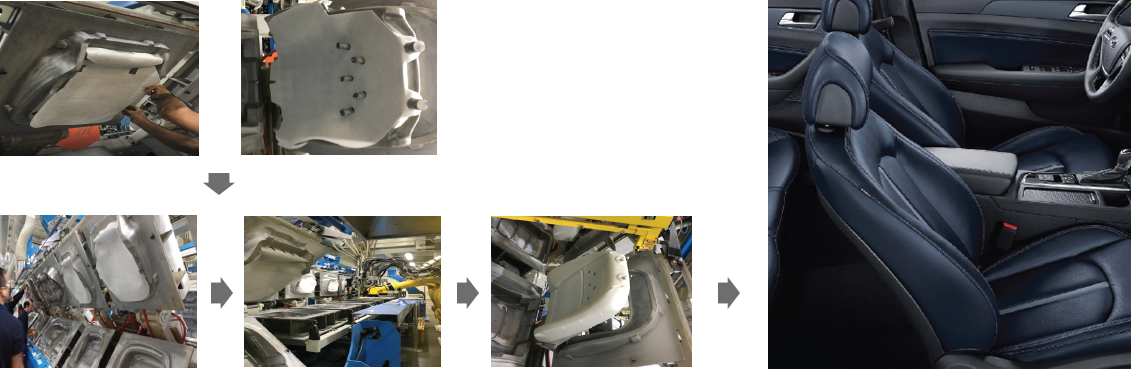

Apply to prevention leakage of foam on Seat foaming. (Material : Non-woven fabric)

Apply to prevention leakage of foam on Seat foaming.


Space adjustment, shock absorption

Electric car

Gauge - space adjustment, shaking prevention, confidentiality secure
Automotive electronics - navigation, space for other automotive electronics, confidentiality secure
Electric car battery - space adjustment, shock absorption

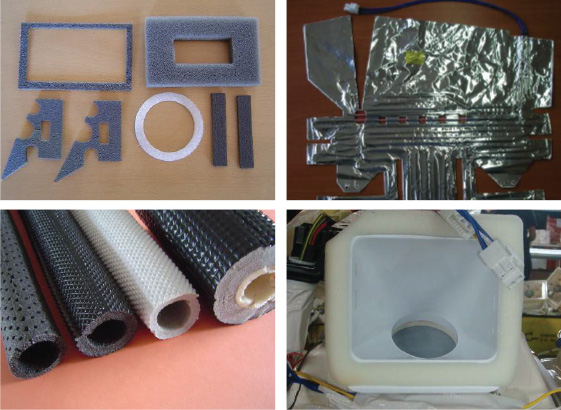

Appliance

Appliance

Appliance
Appliance

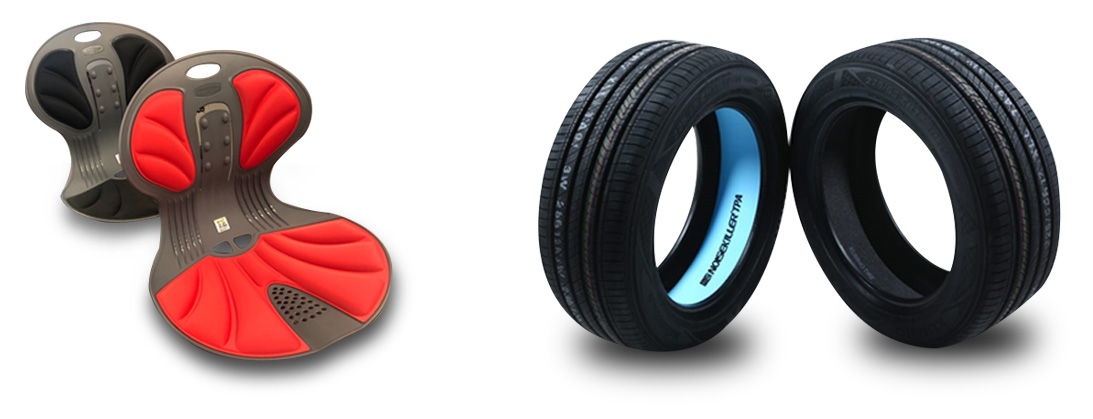

Sundry Goods & Others

Sundry Goods & Others
